Pull w/ Diamond
Clean stylistic design to enhance your contemporary, transitional or traditional décor.
BB - Available for back to back applications. Back plates required on glass door applications.
Coin, Diamond, Rope and Hammered details available. Upcharge applies. Made in the USA.

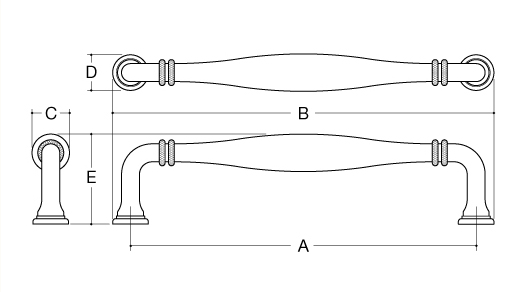

| A | B | C | D | E | ||
|---|---|---|---|---|---|---|
| 7380-D | Pull w/ Diamond | 3-1/2" | 4" | 1/2" | 1/2" | 1-7/32" |
| 7381-D | Pull w/ Diamond | 4" | 4-19/32" | 9/16" | 19/32" | 1-3/8" |
| 7382-D | Pull w/ Diamond | 6" | 6-5/8" | 21/32" | 5/8" | 1-9/16" |
| 7383-D | Pull w/ Diamond | 8" | 8-5/8" | 41/64" | 5/8" | 1-9/16" |
| 7385-D | Pull w/ Diamond | 12" | 12-5/8" | 41/64" | 5/8" | 1-9/16" |
| 7384-D | Appliance Pull w/ Diamond - BB | 8" | 8-3/4"" | 3/4" | 3/4" | 2" |
| 7386-D | Appliance Pull w/ Diamond - BB | 12" | 12-15/16" | 1" | 15/16" | 2-5/16" |
| 7388-D | Appliance Pull w/ Diamond - BB | 18" | 19" | 1-1/32" | 1" | 2-5/8" |
